ENGINEERING SERVICES
Product Development Services
Design

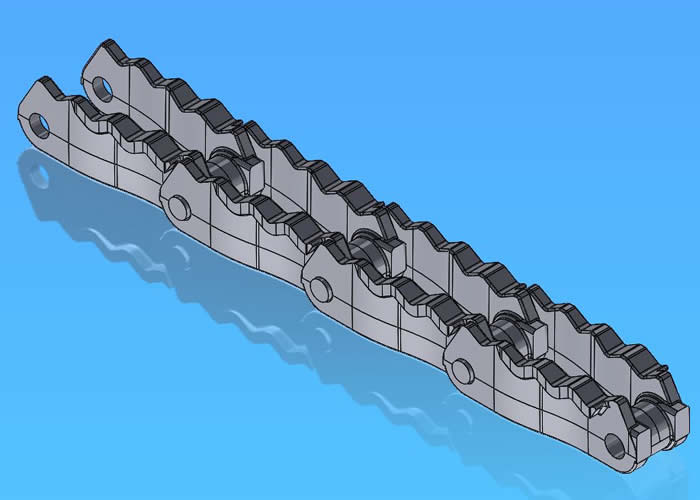

Technology is changing at a rapid pace. As it does, the parts necessary to drive technological change become ever more intricate. Omega Castings can render a customer’s part in a 3D environment and test that part using sophisticated finite element analysis to determine where the strength is needed and where it is not.
As a result, with minor changes, the part can be strengthened and possibly lightened to create efficiencies in a customer’s processes.
Pattern Development
In addition to designing the part, Omega Castings has the knowledge and capabilities to develop the patterns needed to produce our customer’s part. This service includes designing the rigging, gating, and riser placement to produce parts without defects as efficiently as possible.
This is done through 3D rendering of the part in its cast state. After adding the necessary components, the casting of the pattern is simulated using top of the line software. This begins with the simulation of the pour and finishes with a solidification simulation of the casting.

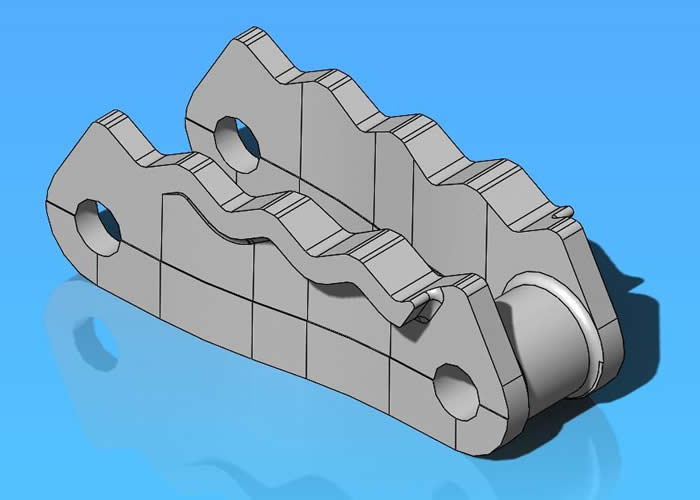

As Cast

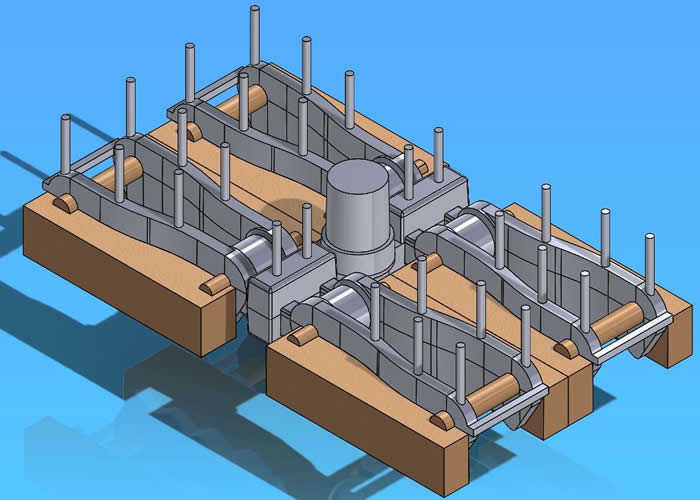

With Rigging

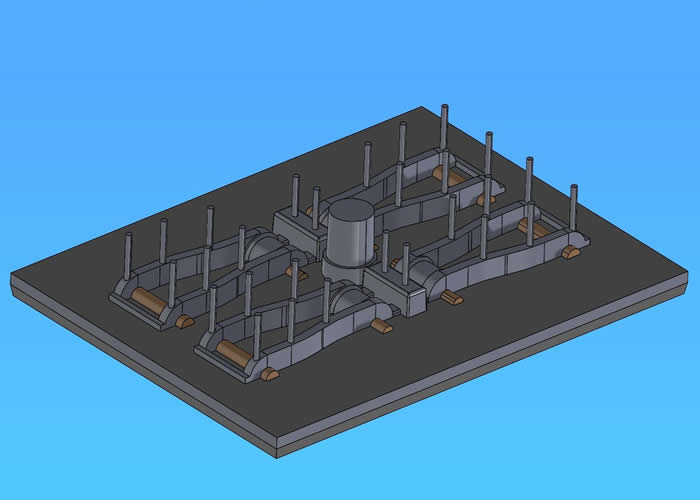

Drag Pattern
Customer Equipment Services
Engineering Services
In the ever-more-competitive global marketplace having a furnace operating at top efficiency is not only important, it is essential. For this reason Omega Castings has developed and pioneered the synchronized drive technology that allows for more furnace load capacity while at the same time increases the life of the belt used. We are more than happy to diagnose our customers’ furnaces to see if synchronized technology is right for them. If so, we will do all the calculations free of charge.
Laboratory Services
Furnaces break down for many reasons. Sometimes these reasons are not obvious, so Omega Castings maintains a failure analysis laboratory to determine root causes of furnace belt and drive mechanism failures. This service is also provided free of charge to our customers.
Repair Services
Omega Castings also offers the ability to repair existing equipment (if possible) and return it to the customer quickly so they are up and running with minimal downtime. The two most common repairs we make are
1) replacing belt pins and 2) replacing trunnions in broken roller assemblies. Repair services can be a very cost effective option when the rest of the belt or roller assembly has a considerable amount of life remaining.

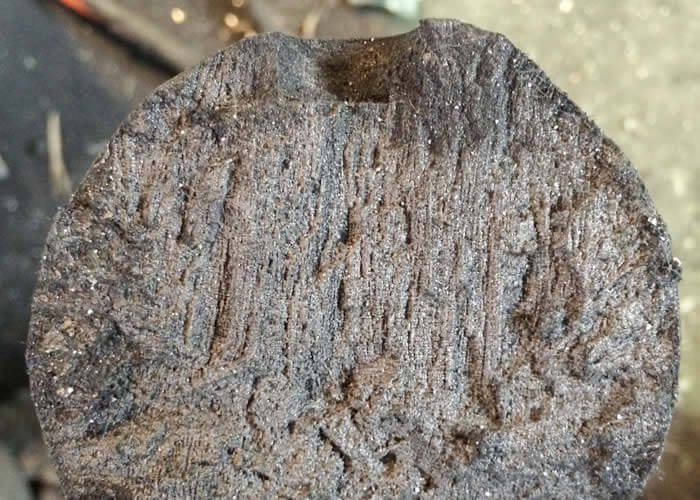

Broken Trunnion

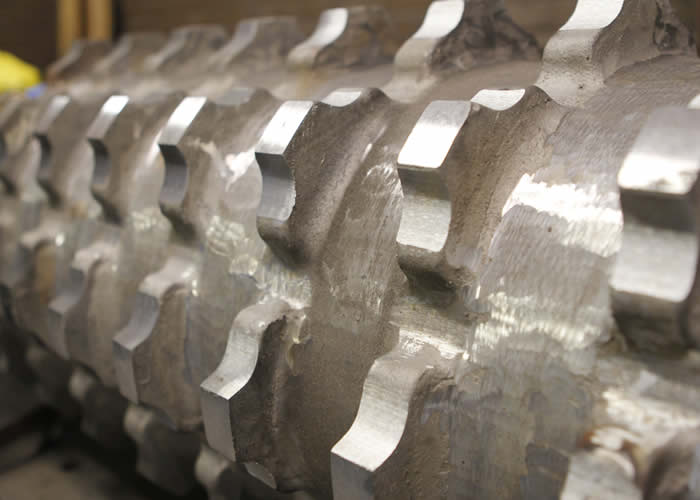

Reprofiled Drive Drum
